ATP concentration greatly affects the determination of kinase inhibitory activity, given most kinase inhibitors bind to the ATP binding site of the kinase. Cell free (biochemical) assays typically utilize ATP concentrations approximating the ATP Km, however this is frequently far lower than the mM ATP concentrations found in cells.

In consideration of this difference, let’s review the rationale of using ATP concentrations around the Km in cell-free assays.  Km values approximate the affinity between ATP and the kinase, while Ki values describe the affinity between inhibitor and kinase. For ATP-competitive inhibitors, the dependencies between the half maximal inhibitory concentration (IC50) and ATP concentrations are described by the Cheng-Prusoff equation (IC50 = Ki + Ki/Km×[ATP]). An inhibitor has different Ki values for every kinase, and every kinase has a different Km for ATP. By representing the ATP concentration with its Km value, the IC50 reflects 2×Ki value. Thus the IC50 value becomes a direct measure of affinity between the inhibitor and the investigated kinase¹⁾.

Table 1 is an example where the IC50 of Inhibitor Z is calculated using the Cheng-Prusoff equation. It hypothesizes that the ATP Km values for Kinase A and Kinase B are 1μM and 10μM, respectively, and the Ki values of Inhibitor Z for Kinase A and Kinase B are 0.1μM and 0.2μM, respectively. The IC50 for Kinase A and Kinase B are calculated as 0.2μM and 0.4μM respectively when ATP concentration was assumed to be each Km value. This result reflects IC50 = 2×Ki value, thus establishing that the binding affinity of the inhibitor against various kinases can be ranked on the basis of IC50.

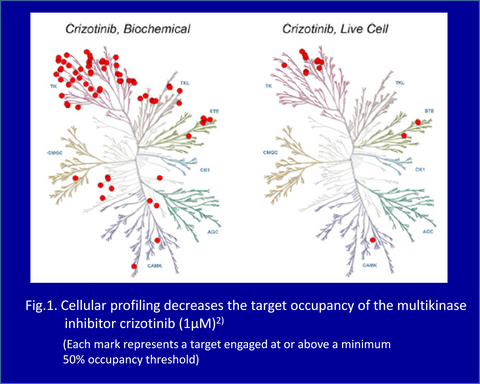

While this information is useful, prior to advancing a drug candidate, its cellular effects must be understood. Cellular ATP concentration is generally thought to be a few mM, and consistently higher than the ATP Km of most kinases.  Table 1 shows that the IC50 values for Kinase A and Kinase B are calculated to be 100μM and 20μM at 1mM ATP, based on the Ki values. This illustrates that at high ATP concentrations, the IC50 discrepancies are greater for kinases with lower Km values compared to those with higher Km values.  Vasta JD reported that the number of kinases that 1μM crizotinib occupies at or above a minimum 50% decreased drastically in a cell-based assay compared to a cell-free assay, indicating that the IC50 of crizotinib in the cell-based assay is higher than the cell-free assay (Fig.1)²⁾.

ATP concentrations in cell-free assays can be increased to more closely approximate cellular levels, however ATP concentration is not the only variable between these 2 assay systems.  A multitude of factors affect compound binding affinity in cells. Given that cell membranes act as a barrier to binding, it is critical to confirm whether the inhibitor chosen by a cell-free assay maintains its inhibitory activity in a cell-based assay as well.

To address this need, Carna Biosciences offers a cell-based assay service known as the NanoBRET™ Target Engagement (TE) Intracellular Kinase Assay System (Promega), in addition to cell-free recombinant kinase products and services (Profiling).

In our cell-free assay service, we offer not only testing at ATP Km values but also at 1mM ATP, while our cell-based assay services can examine compound affinity to the target kinase in a cell.  The target kinase fused with NanoLuc® luciferase can be expressed in cultured cells and the binding of test compounds to the kinase can be detected by BRET (Bioluminescence Resonance Energy Transfer) (Fig.2). Our cell-based assay makes it possible to evaluate the binding affinity of a compound to the target kinase inside intact cells, as it is performed without disrupting cell membranes. Additionally, it enables the determination of residence time, which is especially important as a new pharmacodynamic parameter.  Residence time data is emerging as a highly effective tool to differentiate new drug candidates from known drugs and other compounds which may have the same IC50.

 Carna Biosciences plans to present NanoBRET in a poster session and also exhibit our products and services at a booth in the “AACR-NCI-EORTC International Conference on Molecular Targets and Cancer Therapeutics” held in Boston on October 26th to 30th. Additionally, we plan to present NanoBRET in a poster session in “ELRIG Drug Discovery” held in Liverpool on November 5th and 6th. If you are attending either of these meetings, please be sure to stop by. We look forward to meeting you!

AACR-NCI-EORTC International Conference on Molecular Targets and Cancer Therapeutics

ELRIG Drug Discovery 2019 in Liverpool


Profiling Services

NanoBRET™ Target Engagement (TE) Intracellular Kinase Cell-Based Assay Services


  • Protein Kinases as Drug Targets. 2011, ISBN: 978-3-527-31790-5, B. Klebl.
  • Cell Chem Biol 2018; 25(2): 206-214.e11. Vasta JD.
